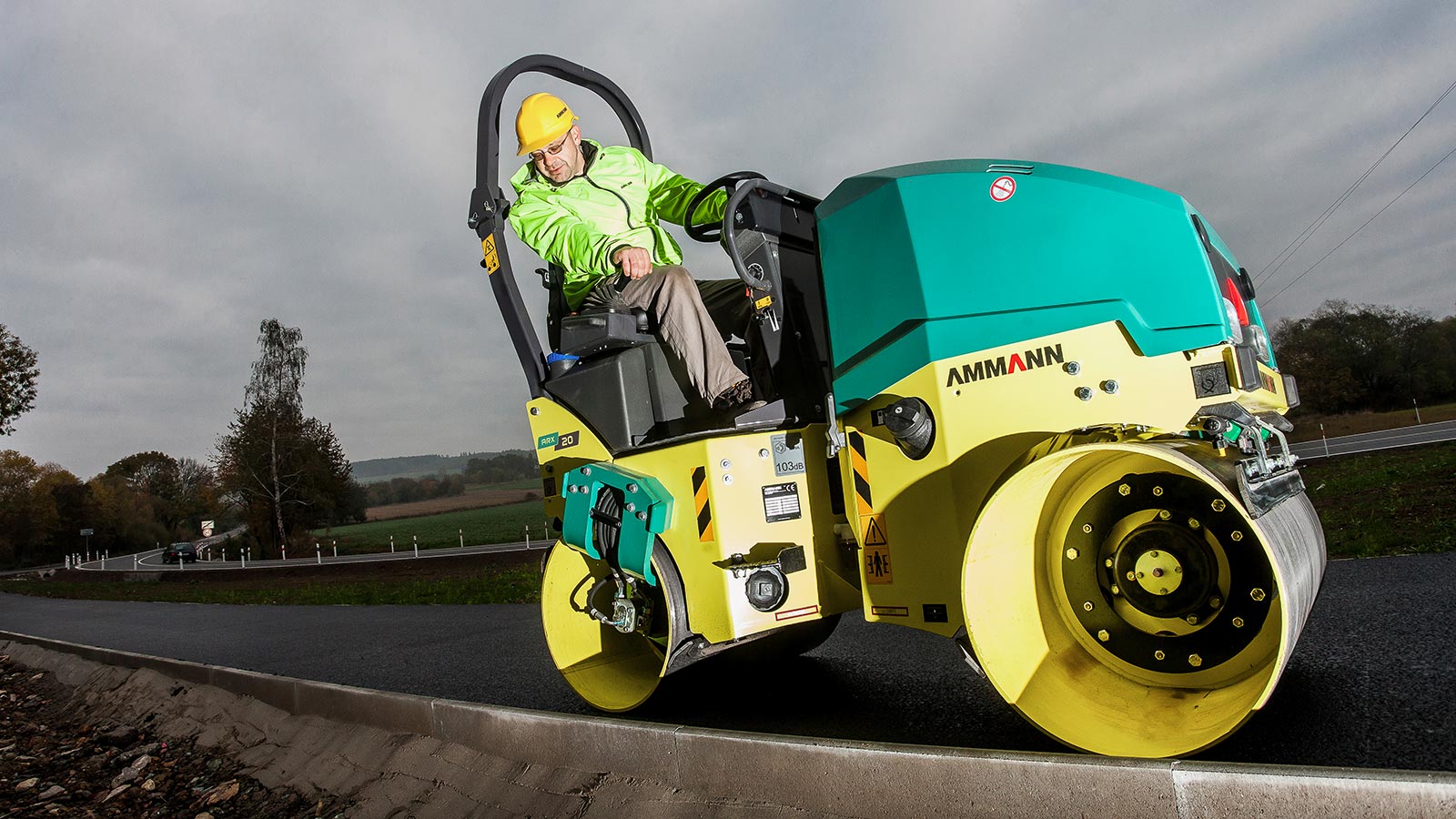

Ammann ARX20 Tandem Roller

Model:	Ammann ARX20 Tandem Roller
Engine :	Yanmar 3tNV76
Engine Power :	20hp
Drum Width :	1000mm
Operating Weight :	1700kg

The Advantages of the Ammann ARX20 Tandem Roller

Customer input plays a crucial role in developing the features that are built into all Ammann products, including light tandem rollers. Those requests include a vibration- insulated operator’s platform with intuitive controls and a system for smooth starts and stops on asphalt. A smart compaction system and easy serviceability also fulfil customer needs.

Ammann ARX20: Design

Rubber mounted platform that limits vibration
Clear and simple layout of dashboard
Reliable, simple switches
Dashboard with integrated multifunctional display
Intuitive, ergonomic instrument panel
Tight turning radius
Fully adjustable and lateral-sliding seat and transversal seat adjustment on ARX23 – ARX45
Unobstructed view to drums
Compact design for easy loading
Foldable ROPS

Ammann ARX20 – Electronic Drive Lever

Offered only by Ammann
Enables smooth starts and stops, especially on asphalt jobs
Especially important on asphalt jobs where smoothness is essential
3 -position throttle lever – 900rpm at low idle, 2100 at working speed and 2400 at high power

Ammann ARX20 – Additional Features & Benefits

Articulated steering concept with articulating oscillation joint
Double drive
Double vibration
Optimal drum diameter
Balanced weight front and rear
2 frequencies with 2 centrifugal forces
Multiple water nozzles
Sprinkler water tank that lasts all shift
2 scrapers per drum
Water-cooled diesel engine with long life, high performance and low maintenance
Combination model available, with rubber tyres in rear
Full flush (side-free) version enables edge work
Offset models increase compaction width

Ammann ARX20 – Serviceability

Reliable, long-life vibration system prevents downtime
Outside drain plugs for quick fluid changes
Bearings and central articulated joint lubricated for machine’s life
Easy access to maintenance points, water filters and nozzles
Long service life and extended service intervals

APPLICATIONS

Ammann Light Tandem Rollers excel in tight spaces and maximise productivity when in the open. The rollers also are productive on soil, aggregates and asphalt.

Applications

Small and medium construction sites
City roads
Boardwalks
Repair works in city centre
Road maintenance

OPERATOR COMFORT

Design can help make operators comfortable and machine loading easy. One of the most important design benefits is ease to use. Putting controls in easy-to-access locations and making displays visible and intuitive help operators make the most of the machine – from the very first day.

Comfortable Operator’s Station

Spacious platform
Double-vibration-isolated operator platform
Fully adjustable and lateral-sliding seat

User Friendly

Easy-to-operate instrument panel
Tight turning radius
Smooth starting and reversing of the machine by electronic drive lever
Compact dimensions for transport
Well positioned fixation points for transport/lifting

Helpful Dashboard

Clear and logical layout
Reliable, intuitive switches
Integrated multifunctional display

Optimal Visibility

Narrow frame enables optimal view to drum edges and surfaces
Adjustable seat improves sight lines

ENGINE & DRIVE

Power is required on every job, and the Ammann Light Tandem Rollers offer plenty. Fuel efficiency is an added bonus that helps reduce your operating costs and has a direct impact on profitability.

Yanmar Engine

Water-cooled and diesel powered
High performance
High torque
2 working speeds
Long life
Low maintenance
Low emissions

OPTIONS

Standard features on Ammann Light Tandem Rollers offer what you need to get the job done.

Choose the options that make your machine the perfect fit for your jobsites.

Options

CE kit with folding ROPS and working lights
Canvas canopy
FOPS canopy
ACEforce compactometer
Asphalt thermometer
Road lighting
Reverse alarm
Battery disconnection switch
Central-lifting hook
Wide-tyre kit (ARX 26K)
ATC – Ammann Traction Control (some models)
Armrests
Edge cutting tool including a multifunction lever
Biodegradable hydraulic oil
In-line drums (some models)
Custom colour
